Specification Type

Values




Model








Indoor (60 Hz)



CS-XU24XKQ




Outdoor



CU-XU24XKQ













Cooling Capacity (min-max)



6.10 (1.12-7.18) kW








21,960 (4,030-25,850) kJ/h













EER (min-max)



14.17 (16.12-12.61) kJ/hW













Electrical Data








Voltage



230 V




Current



6.9 A




Power Input (min-max)



1,550 (250-2,050) W













Moisture Removal



3.4 L/h








7.2 Pt/h













Air Circulation








Indoor



19.2 m³/min (680 ft³/min)




Outdoor



46.3 m³/min (1,635 ft³/min)













Noise Level








Indoor (H / L / Q-Lo)



45/34/28 dB(A)




Outdoor (H)



51 dB(A)

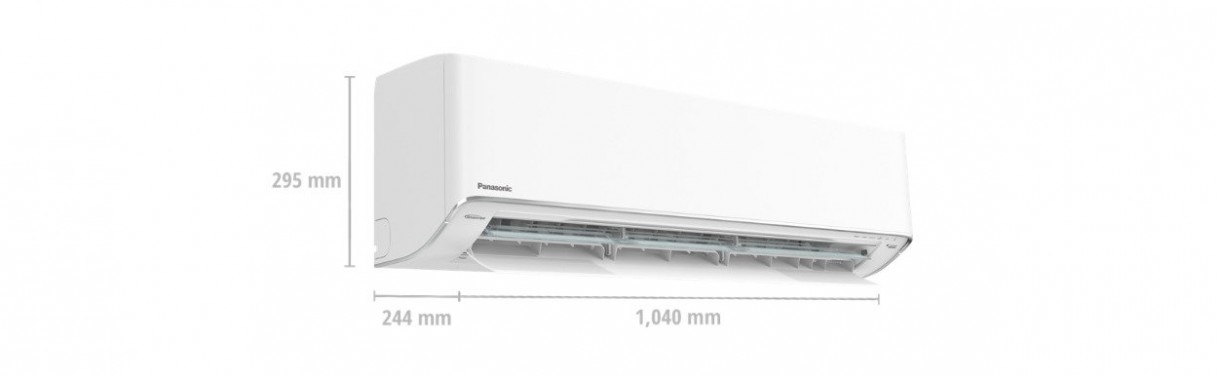

Dimensions (Indoor)








Height



295 mm (11-5/8 inch)




Width



1,040 mm (40-31/32 inch)




Depth



244 mm (9-5/8 inch)

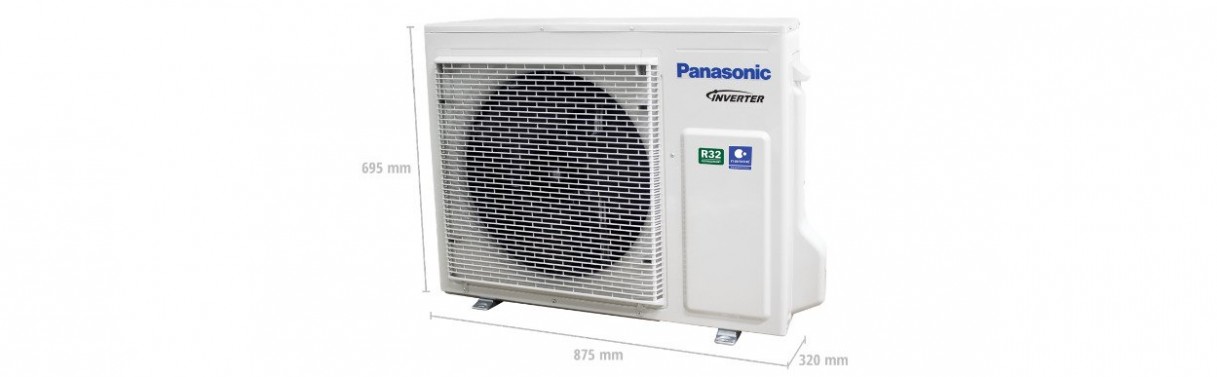

Dimensions (Outdoor)








Height



695 mm (27-3/8 inch)




Width



875 mm (34-15/32 inch)




Depth



320 mm (12-5/8 inch)













Net Weight








Indoor



12 kg (26 lb)




Outdoor



39 kg (86 lb)













Refrigerant Pipe Diameter








Liquid Side



ø 6.35 mm (1/4 inch)




Gas Side



ø 12.70 mm (1/2 inch)













Pipe Extension








Chargeless Pipe Length



10 m




Maximum Pipe Length



30 m




Maximum Elevation Length



20 m




Additional Refrigerant Gas*



15 g/m













Power Supply



Outdoor













Comfort Features








iAUTO-X



Yes




Humidity Sensor



Yes




ECO Mode with A.I.



Yes




Inverter Control



Yes




Sleep Mode



Yes




Quiet Mode



Yes




Soft Dry Operation Mode



Yes




Personal Airflow Creation



Yes













Cleaner Air Features








nanoe™ X



Yes




nanoe-G



Yes




Odour Removing Function



Yes




Removable Washable Panel



Yes













Convenience Features








24-Hour Dual ON & OFF Real Setting Timer



Yes




LCD Wireless Remote Control



Yes




Wireless LAN Remote Control (For Internet Connection)



Yes (Built-in)




Wired Remote Control



Yes (Optional)













Reliability Features








Random Auto Restart



Yes (32 Restart Patterns)




Blue Fin Condenser



Yes




Long Piping (max.)



30 m




Top Panel Maintenance Access



Yes




Self-Diagnostic Function



Yes
