₱ 112,000.00
Out of Stock
Ordering Unit:
Description:| Specification Type | Values |
|---|---|

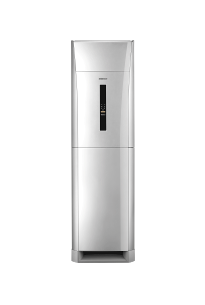

| Indoor Model Number: | CS-E28NFQ |
| Outdoor Model Number: | CU-E28NFQ |
| Power Supply | Phase / Hz: Single / 50/60 |
| V: | 230 |
| • Capacity | |
| Min | 1.0 Kw/h |
| 3,400 Btu/h | |
| 3,600 kJ/h | |
| Rated | 7.2 Kw/h |
| 24,600 Btu/h | |
| 25,920 kJ/h | |
| Max | 7.5 Kw/h |
| 25,600 Btu/h | |
| 27,000 kJ/h | |
| • Current | |
| Min | 1.4 A |
| Rated | 12.2 A |
| Max | 12.5 A |
| • Input power | |
| Min | 210 W |
| Rated | 2,550 W |
| Max | 2,600 W |
| • EER | |
| Min | 16.19 Btu/Hw |
| 4.76Kw/hW | |
| 17.14kj/h W | |
| Rated | 9.65 Btu/hW |
| 2.82Kw/hW | |
| 10.16kj/h W | |
| Max | 9.85 Btu/hW |
| 2.88Kw/hW | |
| 10.38kj/h W | |
| Indoor Noise level | 43 / 36 / 33 dB-A (H/L/Q-Lo) |
| Outdoor Noise level | 51 dB-A (H/L/Q-Lo) |
| Moisture Removal Volume | 4.2 (7.39) L/h (Pt/h) |
| Indoor Air Flow | 16.0 (565) m3/min (ft3/min) |
| Outdoor Air Flow | 59.5 (2,100) m3/min (ft3/min) |
| Refrigerant Type, Amount | R410A / 1,400 (49.4) g(oz) |
| Indoor Dimension (Unit) | 1880 H mm |
| 540 W mm | |
| 357 D mm | |
| Indoor Dimension (Packing) | 2,010 H mm |
| 700 W mm | |
| 480 D mm | |
| Outdoor Dimension (Unit) | 700 H mm |
| 998 W mm | |
| 320 D mm | |
| Outdoor Dimension (Packing) | 1,170 H mm |
| 460 Wmm | |
| 800 D mm | |
| ndoor Nett Weight | 37 (82) kg (lb) |
| Indoor Gross Weight | 49 (108) kg (lb) |
| Outdoor Nett Weight | 46 (101) kg (lb) |
| Outdoor Gross Weight | 52 (115) kg (lb) |
| Pipe size (Liquid / Gas) | 6.35 / 12.70 mm |
| Pipe Length | 3 ~ 15 m |
| Indoor & Outdoor Elevation | 10 m |
| Add Gas amount | 20 g/m |
| Pipe Length for additional gas | 7 m |
