SPECIFICATIONS




CAPACITY


POWER INPUT


RUNNING CURRENT


EER



Cooling (Min ~ Rated ~ Max):
      0.96 ~ 2.60 ~ 2.89 kW
      3,291 ~ 8,871 ~ 9,858 Btu/h
      3,472 ~ 9,359 ~ 10,400 Btu/h
Cooling (Min ~ Rated ~ Max):    215 ~ 630 ~ 750 W
Cooling (Min ~ Rated ~ Max):    1.30 ~ 3.60 ~ 4.50 A
EER:   4.13 W/W;   14.08 (Btu/h)/W;   14.86 (kJ/h)/W



POWER SUPPLY



Power Supply:   1, 230, 60 (Ø, V, Hz)
Available Voltage Range:   187 ~ 276 V
Power Factor - Cooling:   81%
Moisture Removal:   1.25 l/h

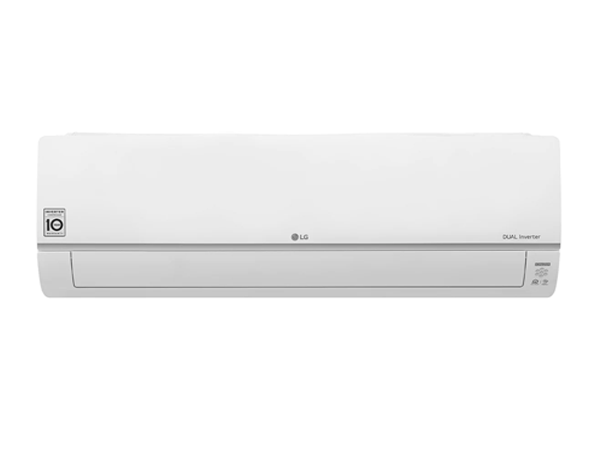

INDOOR UNIT



Air Flow Rate - Cooling, Max/H/M/L:    10.5 / 9 / 6.6 / 4.2 m³/min
Sound Pressure Level - Cooling, Max/H/M/L/SL:    - / 39 / 33 / 27 / 21 dB(A)
Dimensions (W × H × D) - Net:    837 x 308 x 189 mm
Dimensions (W × H × D) - Shipping:    897 x 390 x 254 mm


Weight - Shipping:   10.5kg
Weight - Net:    8.7kg
Exterior Color Code:    Munsell 7.5BG 10/2 (RAL 9016)



OUTDOOR UNIT



Air Flow Rate - Max:    28.0 m³/min
Sound Pressure Level - Cooling, Rated:   50 dB(A)
Dimensions (W × H × D) - Net:    720 × 500 × 230 mm
Dimensions (W × H × D) - Shipping:   839 × 532 × 324 mm


Weight - Net:    22.7kg

Weight - Shipping:    24.4kg
Max. Fuse Size:   20A
Exterior Color Code:    Munsell 9.54Y 8.34/1.31 (RAL 9001)
Operation Range - Cooling:    18 ~ 48 °C DB



CIRCUIT BREAKER



Circuit Breaker:    15A
Power Supply Cable:    3 x 1 No. x mm²
Power Supply to Unit:    Indoor
Power and Communication Cable:   4 x 1 No. x mm²



PIPING



Size - Liquid:   ø 6.35 mm
Size - Gas:    ø 9.52 mm
Connections Method - Indoor/Outdoor:   Flared/Flared
Drain Hose Size - O.D, I.D:   20, 15 mm



BETWEEN INDOOR & OUTDOOR



Piping Length - Min/Standard/Max:   3/7.5/20 m
Piping Length - No Change:   12.5 m
Max. Elevation Difference:   15m
Piping Connection Heat Insulation:   Both liquid and gas pipes



REFRIGERANT



Type:   R32

Control:    Capillary
Pre Charge:   450g

t-CO₂ eq:   0.304
Additional Charge:   15g/m
Global Warning Potential:    675



COMPRESSOR



Type:    Twin Rotary
Model:    DST066MAA
Motor Type:    BLDC
Oil Type / Maker:   PVE (FW68D) / IDEMITSU

Oil Charge:    220cc



FAN(INDOOR)


FAN(OUTDOOR)



Type:    Cross Flow Fan
Type:    Propeller Fan
Motor Type:    AC
Motor Output:    25W


Motor Output:   30W
Motor Insulation:    Class E
Motor Enclosure / Ingress Protection:    TEAO/IP44



HEAT EXCHANGER



Evaporator - Material, Tube / Fin:    Cu/Al
Evaporator - (ø x Row x Column x FPI x L) x Qty.:    (ø7 x 2 x 15 x 21 x 616.8) x 1
Evaporator - Corrosion Protection:    PCM
Evaporator - Fin Type:    Slit


Condenser - Material, Tube / Fin:    Cu/Al
Condenser - (ø x Row x Column x FPI x L) x Qty.:    (ø5 x 2 x 22 x 21 x 686) x 1
Condenser - Corrosion Protection:    Gold
Condenser - Fin Type:    Louver
