₱ 45,998.00
As low as ₱ 3,276.00/mo
Out of Stock
Ordering Unit: pc
Description:| Specification Type | Values |
|---|---|
| • CAPACITY | |
| Cooling (Min ~ Rated ~ Max) | 3.52 kW |
| 12,000 Btu/h | |
| 12,660 kJ/h | |
| • POWER INPUT | |
| Cooling (Min ~ Rated ~ Max) | 1,030 W |
| • RUNNING CURRENT | |
| Cooling (Min ~ Rated ~ Max) | 5.90 A |
| • EER | |
| EER | 3.41 W/W |
| 11.65 (Btu/h)/W | |
| 12.29 (kJ/h)/W | |
| • POWER SUPPLY | |
| Power Supply | 1, 230, 60 (Ø, V, Hz) |
| Available Voltage Range | 187 ~ 276 V |
| Power Factor - Cooling | 93% |
| Moisture Removal | 1.25 l/h |
| 2.64 pts/h | |
| Circuit Breaker | 15 A |
| Power Supply Cable | 3 × 1 No. × mm² |
| Power Supply to Unit | Indoor |
| Power and Communication Cable | 4 × 1 No. × mm² |

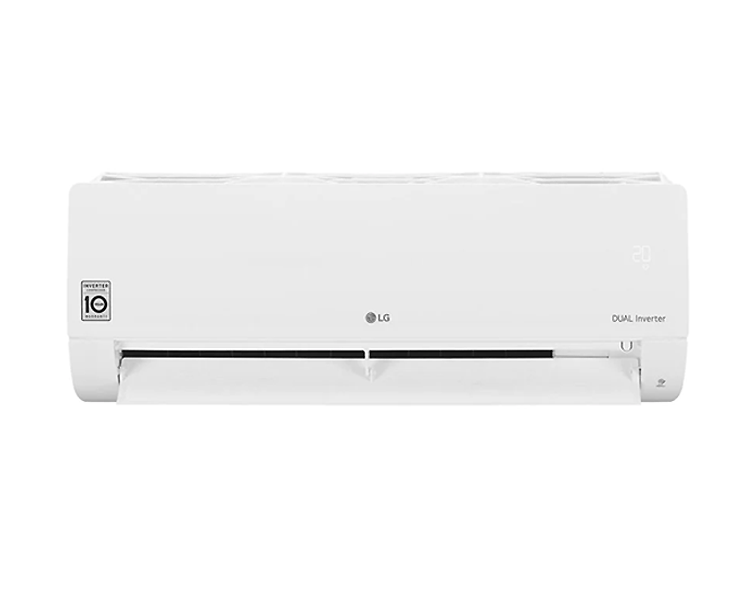

| • INDOOR UNIT | |
| Air Flow Rate - Cooling, Max/H/M/L | 13/10/6.6/4.2 m³/min |
| 459/353/233/148 CFM | |
| Fan Motor Speed - Cooling, Max/H/HM/M/ML/L/SL | 1650/1250/1140/1030/840/650/480 rpm |
| Sound Pressure Level - Cooling, Max/H/M/L/SL | -/41/35/27/21 dB(A) |
| Dimensions (W × H × D) - Net | 837 x 308 x 189 mm |
| Dimensions (W × H × D) - Shipping | 897 x 390 x 254 mm |
| Weight - Net | 8.7kg |
| Weight - Shipping | 10.5kg |
| Disconnect Switch | 15 A |
| Exterior Color Code | Munsell 7.5BG 10/2 (RAL 9016) |
| Operation Range - Cooling | 16 ~ 32 °C DB |
| 61 ~ 90 °F DB | |
| 10 ~ 23 °C WB | |
| 50 ~ 73.4 °F WB | |
| • OUTDOOR UNIT | |
| Air Flow Rate - Max | 28.0 m³/min |
| 989 CFM | |
| Sound Pressure Level - Cooling, Rated | 50 dB(A) |
| Dimensions (W × H × D) - Net | 717 x 495 x 230 mm |
| Dimensions (W × H × D) - Shipping | 839 x 532 x 324 mm |
| Weight - Net | 23.0kg |
| Weight - Shipping | 24.7kg |
| Max. Fuse Size | 15 A |
| Exterior Color Code | Munsell 9.54Y 8.34/1.31 (RAL 9001) |
| Operation Range - Cooling | 18 ~ 48 °C DB |
| • PIPING | |
| Size - Liquid | ø 6.35 mm |
| Size - Gas | ø 9.52 mm |
| Connections Method - Indoor/Outdoor | Flared/Flared |
| Drain Hose Size - O.D, I.D | 21.5, 16.0 mm |
| Max Piping Length Capacity | 98% |
| • REFRIGERANT | |
| Type | R32 |
| Pre Charge | 570g |
| Additional Charge | 15g/m |
| Control | Capillary |
| Global Warning Potential | 675 |
| t-CO₂ eq | 0.385 |
| • COMPRESSOR | |
| Type | Twin Rotary |
| Model | DST102MAA |
| Motor Type | BLDC |
| Oil Type / Maker | PVE (FW68D) / IDEMITSU |
| Oil Charge | 280cc |
| Manufacturer / Country of Origin | LG Electronics / China |
| • HEAT EXCHANGER | |
| Evaporator - Material, Tube / Fin | Cu/Al |
| Evaporator - (ø x Row x Column x FPI x L) x Qty. | (ø7 x 2 x 15 x 21 x 616.8) x 1 |
| Evaporator - Corrosion Protection | PCM |
| Evaporator - Fin Type | Slit |
| Condenser - Material, Tube / Fin | Cu/Al |
| Condenser - (ø x Row x Column x FPI x L) x Qty. | (ø5 x 2 x 22 x 21 x 686) x 1 |
| Condenser - Corrosion Protection | Gold |
| Condenser - Fin Type | Louver |
