SPECIFICATIONS




CAPACITY


POWER INPUT


RUNNING CURRENT


EER



Cooling (Min ~ Rated ~ Max):
 1.39 ~ 5.28 ~ 5.86 kW
 4,739 ~ 18,000 ~ 20,000 Btu/h
5,000 ~ 18,990 ~ 21,100 Btu/h
Cooling (Min ~ Rated ~ Max):    290 ~ 1,540 ~ 2,000 W
Cooling (Min ~ Rated ~ Max):    1.50 ~ 7.10 ~ 10.00 A
EER:
3.43 W/W
11.69 (Btu/h)/W
12.33 (kJ/h)/W



POWER SUPPLY



Power Supply:   1, 230, 60 (Ø, V, Hz)
Available Voltage Range:   187 ~ 276 V
Power Factor - Cooling:   94%
Moisture Removal:   1.25 l/h

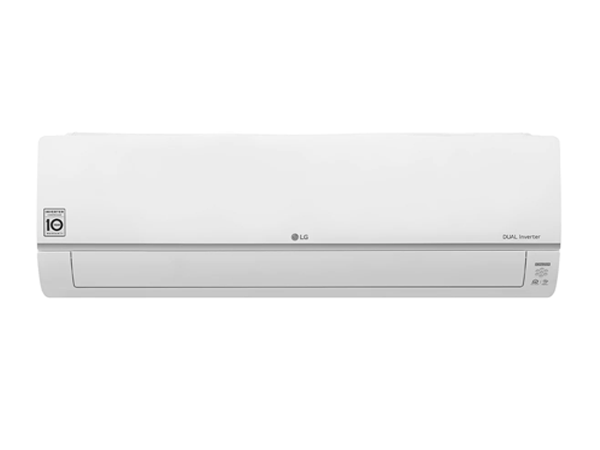

INDOOR UNIT



Air Flow Rate - Cooling, Max/H/M/L:    18 / 12.7 / 10.2 / 8.4 m³/min
Sound Pressure Level - Cooling, Max/H/M/L/SL:    - / 45 / 40 / 37 / 32 dB(A)
Dimensions (W × H × D) - Net:    998 × 345 × 210 mm
Dimensions (W × H × D) - Shipping:    1068 × 425 × 279 mm


Weight - Net:    11.2kg
Weight - Shipping:    13.2kg
Exterior Color Code:   Munsell 7.5BG 10/2 (RAL 9016)



OUTDOOR UNIT



Air Flow Rate - Max:    38.0 m³/min

Max. Fuse Size:   15A
Fan Motor Speed - Cooling, Min ~ Max:   650 ~ 900 rpm
Sound Pressure Level - Cooling, Rated:   53 dB(A)
Dimensions (W × H × D) - Net:   770 × 545 × 288 mm


Operation Range - Cooling:    18 ~ 48 °C DB
Exterior Color Code:   Munsell 9.54Y 8.34/1.31 (RAL 9001)
Weight - Net:   32.5kg

Weight - Shipping:   34.8kg
Dimensions (W × H × D) - Shipping:   920 × 588 × 393 mm



CIRCUIT BREAKER



Circuit Breaker:   25A
Power Supply Cable:    3 x 1.5 No. x mm²
Power Supply to Unit:   Indoor
Power and Communication Cable:   4 x 1.5 No. x mm²



PIPING



Size - Liquid:   ø 6.35 mm
Size - Gas:   ø 12.7 mm
Connections Method - Indoor/Outdoor:   Flared/Flared
Drain Hose Size - O.D, I.D:    21.5, 16.0 mm



BETWEEN INDOOR & OUTDOOR



Piping Length - Min/Standard/Max:    3/7.5/30 m
Piping Length - No Change:    12.5 m
Max. Elevation Difference:    20m
Piping Connection Heat Insulation:   Both liquid and gas pipes



REFRIGERANT



Type:    R32

Control:   Capillary
Pre Charge:   950g
Additional Charge:    15g/m
Global Warning Potential:   675

t-CO₂ eq:    0.641



COMPRESSOR



Type:    Twin Rotary

Model:   DAT156MAD
Motor Type:    BLDC
Oil Type / Maker:    PVE (FW68D) / IDEMITSU

Oil Charge:   400cc
Manufacturer / Country of Origin:   LG Electronics / China



FAN(INDOOR)


FAN(OUTDOOR)



Type:    Cross Flow Fan

Motor Output:    30W
Type:   Propeller Fan

Motor Type:    BLDC
Motor Insulation:    Class E

Motor Output:    43W
Motor Enclosure / Ingress Protection:   TEAO/IPX4



HEAT EXCHANGER



Evaporator - Material, Tube / Fin:   Cu/Al
Evaporator - (ø x Row x Column x FPI x L) x Qty.:   (ø7 x 2 x 16 x 20 x 744) x 1
Evaporator - Corrosion Protection:    PCM
Evaporator - Fin Type:    Slit


Condenser - Material, Tube / Fin:   Cu/Al
Condenser - (ø x Row x Column x FPI x L) x Qty.:    (ø7 x 2 x 24 x 18 x 823) x 1
Condenser - Corrosion Protection:   Gold
Condenser - Fin Type:    Louver
